LS Series Brushless Motor

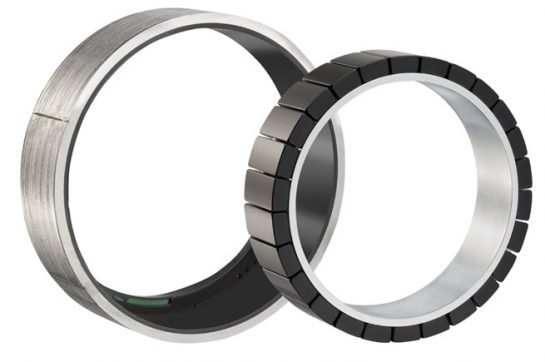

Our standard products are the LS-Series and TG-Series motors that include various high performance brushless permanent magnet machines designed with a common stator and mount architecture. Different rotor options result in varying torque capacities. This allows optimization of weight and efficiency based on application torque requirements. Various stator windings enable a range of operating voltages. Performance and mechanical parameters of the rotor options are summarized here. Click on the individual data sheets for details on performance and winding options. All models can be run as motors or generators. Contact ThinGap for further details.



LS Series Motor Summary Table

Motor Model DesignationContinuous Torque Range (N-m)
LSI 510.14
LSI 590.2
LSI 75 Short0.29
LSI 75 Long0.66
LSI 1051.5 to 1.9
LSI 1301.9 to 2.2
LSI 1523.2
LSI 1606.5
LSI 26711.9

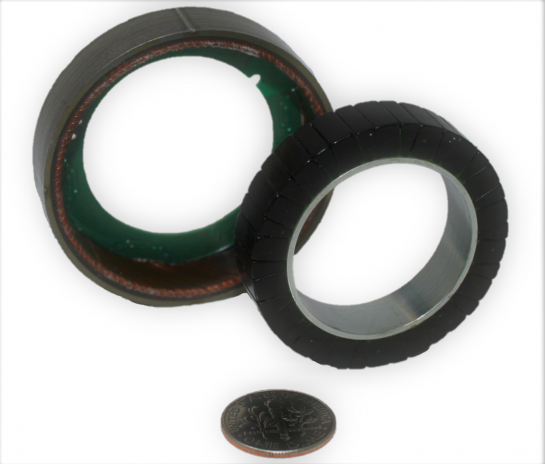

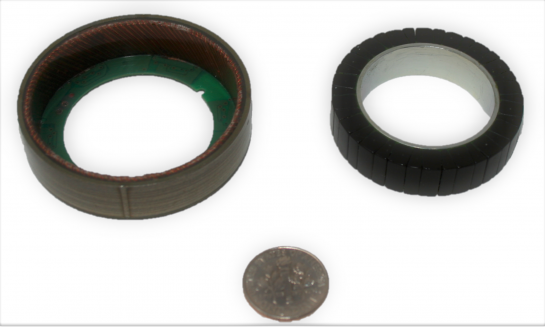

Model LSI-51 Download LSI-51 Summary

PERFORMANCE SUMMARY1 LSI-51
Max continuous torque (Nm) 0.14
Max permissible speed (RPM) 3326
Max continuous shaft power (kW) 0.047
Max efficiency (%) 79
Peak torque – 1s (3s) (Nm) 0.515 (0.319)
MECHANICAL SUMMARY LSI-51
Max outer diameter in (mm) 2.008 (51)
Through hole diameter in (mm) 1.181 (30)
Total axial height in (mm) 0.483 (12.3)
Partset mass
(rotor & stator) lbs (kg)		 0.092 (0.042)
Rotor Inertia lbm-ft2 (kg-m2) 1.97E-5 (9.6E-5)

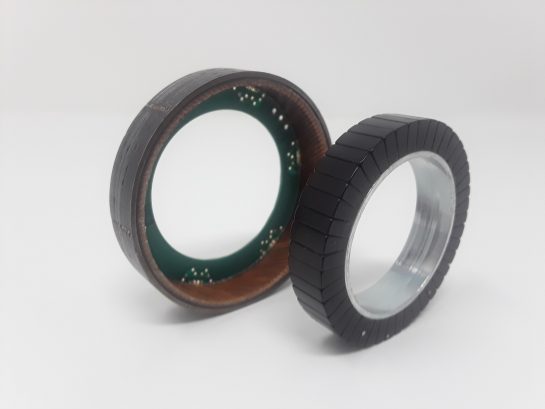

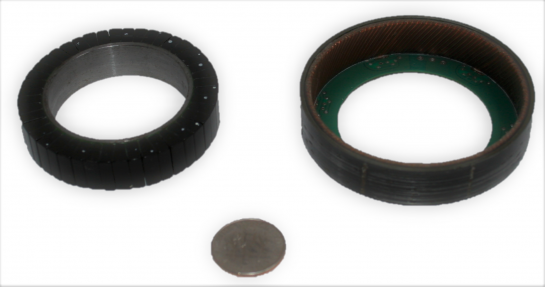

Model LSI-59 Download LSI-59 Summary

PERFORMANCE SUMMARY1 LSI-59
Max continuous torque (Nm) 0.18
Max permissible speed (RPM) 2840
Max continuous shaft power (kW) 0.054
Max efficiency (%) 81
Peak torque – 1s (3s) (Nm) 0.8 (0.445)
MECHANICAL SUMMARY LSI-59
Max outer diameter in (mm) 2.323(59)
Through hole diameter in (mm) 1.410(36)
Total axial height in (mm) 0.503(12.8)
Partset mass
(rotor & stator) lbs (kg)		 0.121(3.07)
Rotor Inertia lbm-ft2 (kg-m2) 3.89E-5 (1.9E-4)

Model LSI-75 Download LSI-75 Summary

PERFORMANCE SUMMARY1 LSI-75 Short LSI-75 Long
Max continuous torque (Nm) 0.29 0.66
Max permissible speed (RPM) 2500 2500
Max continuous shaft power (kW) 0.075 0.075
Max efficiency (%) 80 84
Peak torque – 30s (120s) (Nm) 0.368 (0.325) 0.825 (0.735)
MECHANICAL SUMMARY LSI-75 Short LSI-75 Long
Max outer diameter in (mm) 2.953 (75) 2.953 (75)
Through hole diameter in (mm) 2.056 (52) 2.056 (52)
Total axial height in (mm) 0.468 (11.9) 0.799 (20.3)
Partset mass
(rotor & stator) lbs (kg)		 0.151 (0.068) 0.278 (0.126)
Rotor Inertia lbm-ft2 (kg-m2) 8.73E-5 (4.26E-4) 1.71E-4 (8.35E-4)

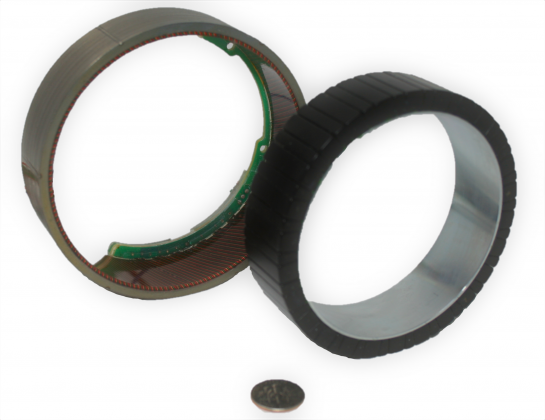

Model LSI-105 Download LSI-105 Summary

PERFORMANCE SUMMARY1 LSI-105
Max continuous torque (Nm) 0.86
Max permissible speed (RPM) 1800
Max continuous shaft power (kW) 0.162
Max efficiency (%) 85
Peak torque – 1s (3s) (Nm) 1.23 (0.806)
MECHANICAL SUMMARY LSI-105
Max outer diameter in (mm) 4.125 (105)
Through hole diameter in (mm) 3.06 (78)
Total axial height in (mm) 1.28 (33)
Partset mass
(rotor & stator) lbs (kg)		 0.670 (0.304)
Rotor Inertia lbm-ft2 (kg-m2) 7.01E-4 (3.423E-3)

Model LSI-130 Download LSI-130 Summary

PERFORMANCE SUMMARY1 LSI-130
Max continuous torque (Nm) 2.12
Max permissible speed (RPM) 1530
Max continuous shaft power (kW) 0.339
Max efficiency (%) 83
Peak torque – 1s (3s) (Nm) 10.8 (6.47)
MECHANICAL SUMMARY LSI-130
Max outer diameter in (mm) 5.125 (130)
Through hole diameter in (mm) 3.751 (95)
Total axial height in (mm) 0.902 (23)
Partset mass
(rotor & stator) lbs (kg)		 0.837 (0.379)
Rotor Inertia lbm-ft2 (kg-m2) 1.52E-3 (7.421E-3)

Model LSI-152 Download LSI-152 Summary

PERFORMANCE SUMMARY1 LSI-152
Max continuous torque (Nm) 2.06
Max permissible speed (RPM) 1000
Max continuous shaft power (kW) 0.216
Max efficiency (%) 84
Peak torque – 1s (3s) (Nm) 12.3 (6.84)
MECHANICAL SUMMARY LSI-152
Max outer diameter in (mm) 6.00 (152)
Through hole diameter in (mm) 5.202 (132)
Total axial height in (mm) 1.124 (29)
Partset mass
(rotor & stator) lbs (kg)		 0.505 (0.23)
Rotor Inertia lbm-ft2 (kg-m2) 9.79E-4 (4.78E-3)

Model LSI-160 Download LSI-160 Summary

PERFORMANCE SUMMARY1 LSI-160
Max continuous torque (Nm) 5.67
Max permissible speed (RPM) 1810
Max continuous shaft power (kW) 1.074
Max efficiency (%) 86
Peak torque – 1s (3s) (Nm) 44 (23.9)
MECHANICAL SUMMARY LSI-160
Max outer diameter in (mm) 6.299 (160)
Through hole diameter in (mm) 5.293 (134)
Total axial height in (mm) 1.592 (40)
Partset mass
(rotor & stator) lbs (kg)		 0.926 (0.42)
Rotor Inertia lbm-ft2 (kg-m2) 2.24E-3 (1.094E-2)

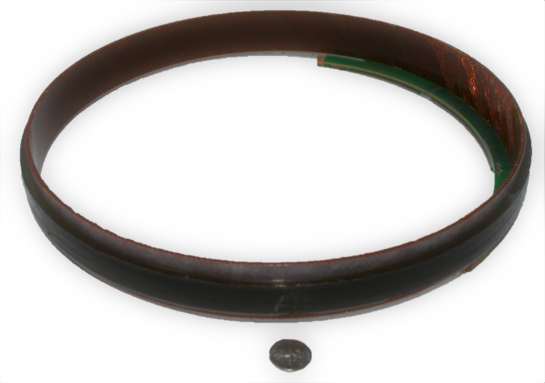

Model LSI-267 Download LSI-267 Summary

PERFORMANCE SUMMARY1 LSI-267
Max continuous torque (Nm) 12.18
Max permissible speed (RPM) 2200
Max continuous shaft power (kW) 2.807
Max efficiency (%) 89
Peak torque – 1s (3s) (Nm) 68.8 (37.6)
MECHANICAL SUMMARY LSI-267
Max outer diameter in (mm) 10.5 (267)
Through hole diameter in (mm) 9.108 (231)
Total axial height in (mm) 1.252 (32)
Partset mass
(rotor & stator) lbs (kg)		 2.047 (0.928)
Rotor Inertia lbm-ft2 (kg-m2) 1.66E-2 (8.104E-2)
